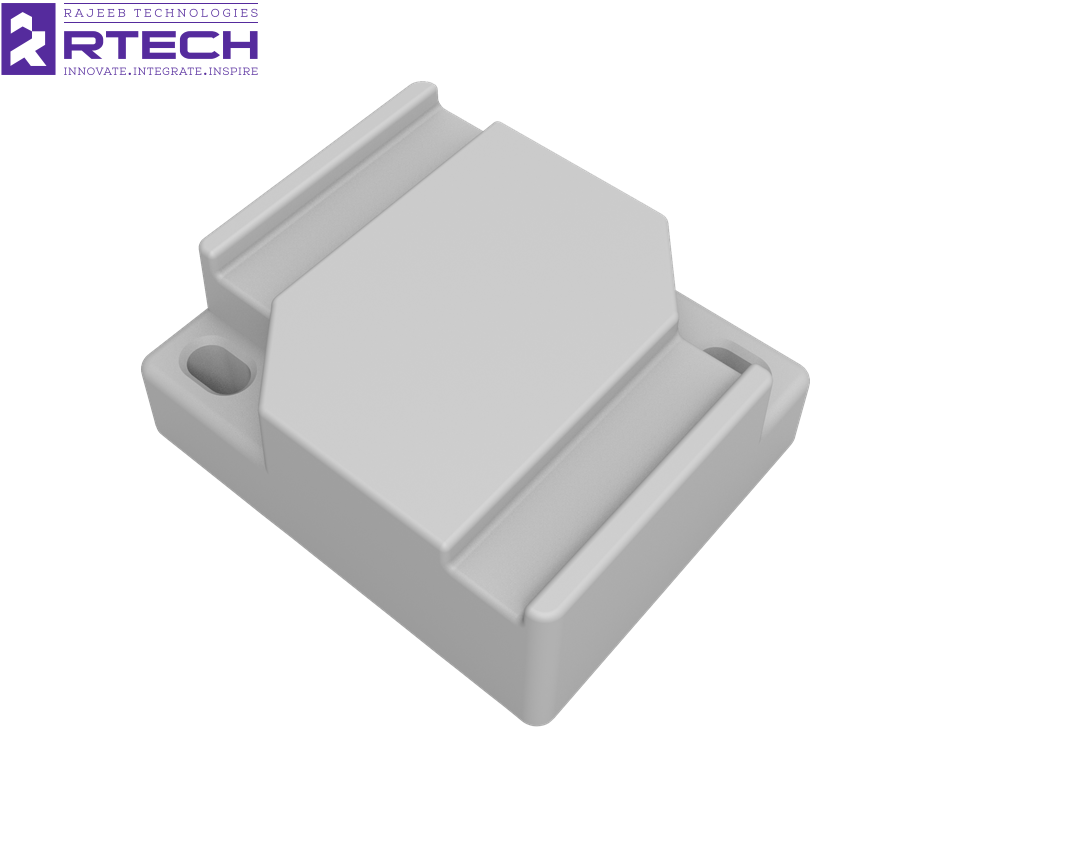

Mikrotik TG-BT5-OUT Bluetooth Antenna

Description

MikroTik TG-BT5-OUT is an industrial-grade outdoor Bluetooth tag designed for asset tracking and telemetry applications. It features a robust IP69k-rated enclosure, making it resistant to dust and high-pressure water jets. Equipped with Bluetooth 5.2 (Silabs BG22), the tag supports iBeacon, Eddystone, and MikroTik telemetry formats, ensuring compatibility with various IoT systems.

Key Features:

• Bluetooth Version: 5.2 (Silabs BG22)
• Antenna Gain: 1.5 dBi (360° omnidirectional)
• Battery: Built-in 550 mAh LiMnO2 battery
• Estimated Battery Life: 5–15 years (depending on update interval)
• Temperature Range: -20°C to +85°C
• Ingress Protection: IP69k (dust-tight and high-pressure water-resistant)
• Dimensions: 38 x 32 x 16 mm
• Weight: 27 g
• Mounting Options: Strapping, M3 screw
• Activation: Magnet activation
• Encryption: Optional AES encryption
• Sensors: Built-in accelerometer and temperature sensor (±0.5°C accuracy)
• Connectivity: NFC with encoded serial number

For more information or to purchase, visit our product page. For support, refer to the MikroTik TG-BT5-OUT User Manual.
