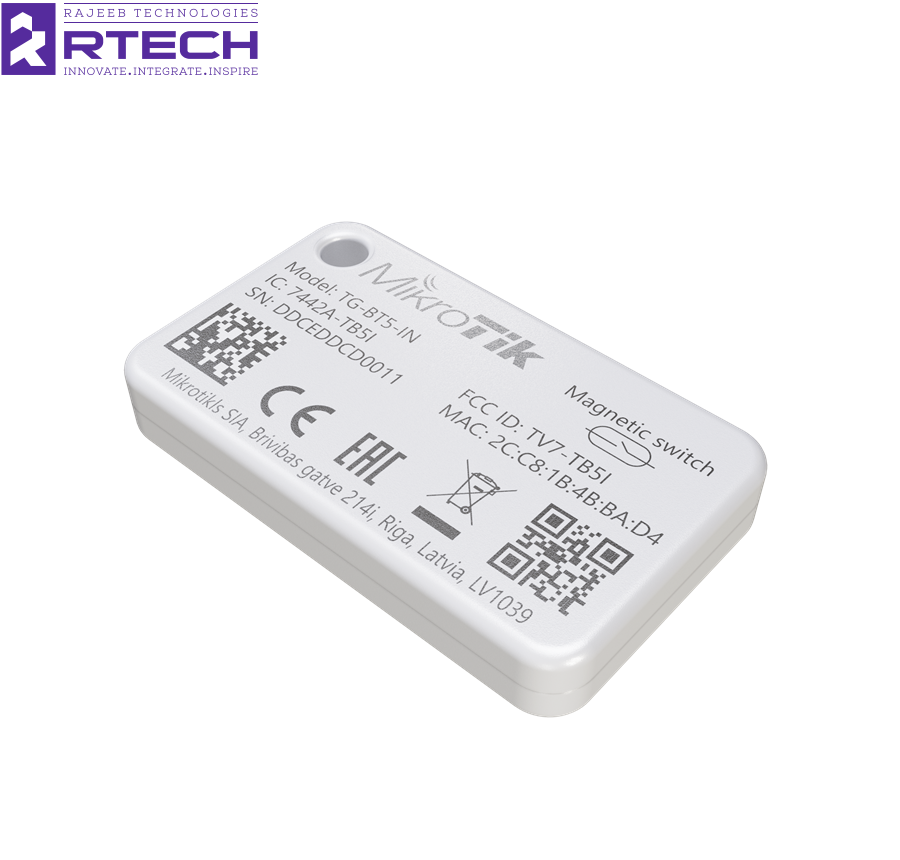

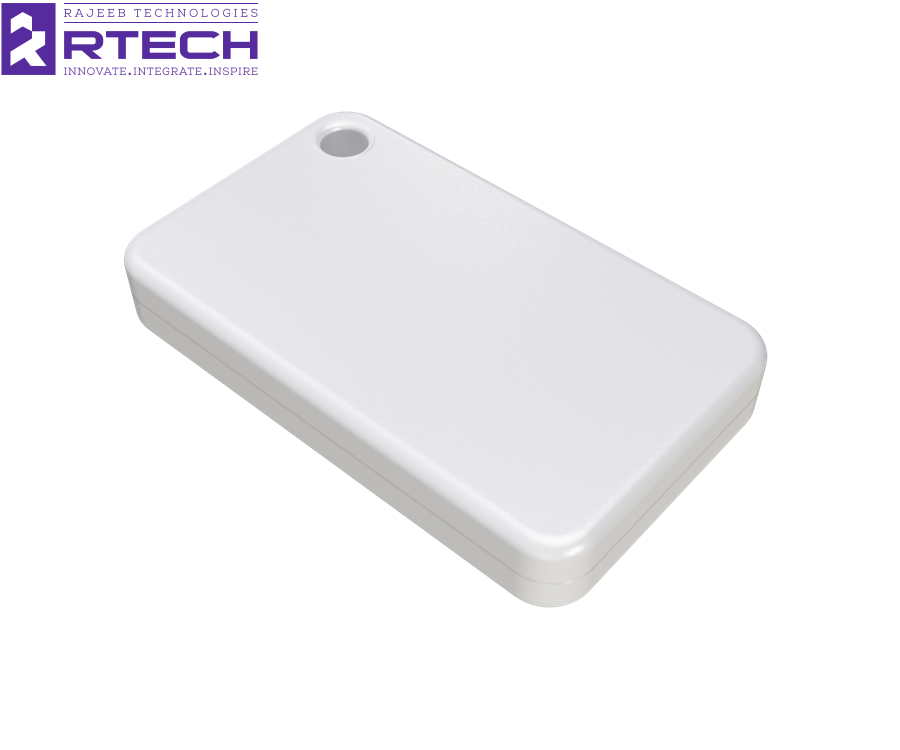

Mikrotik TG-BT5-IN Bluetooth Antenna

Description

MikroTik TG-BT5-IN is an indoor Bluetooth tag designed for asset tracking and telemetry applications. It features a slim and sleek design, making it perfect for indoor inventory tracking. The tag broadcasts iBeacon, Eddystone, or MikroTik telemetry advertising packets to a gateway, which then pushes the data to a remote server utilizing MQTT or HTTP protocols.

Key Features:

• Bluetooth Version: 5.2 (Silabs BG22)
• Antenna Gain: 1.5 dBi (360° omnidirectional)
• Battery: Built-in 220 mAh LiMnO2 battery
• Estimated Battery Life: 2–6 years (depending on update interval)
• Temperature Range: 0°C to 70°C
• Ingress Protection: IP55 (dust-tight and water-resistant)
• Dimensions: 37 x 22 x 6 mm
• Weight: 7 g
• Mounting Options: Hanging, M3 screw, double-sided 3M tape (included)
• Activation: Magnet activation
• Encryption: Optional AES encryption
• Sensors: Built-in accelerometer

For more information or to purchase, visit our product page. For support, refer to the MikroTik TG-BT5-IN User Manual.
