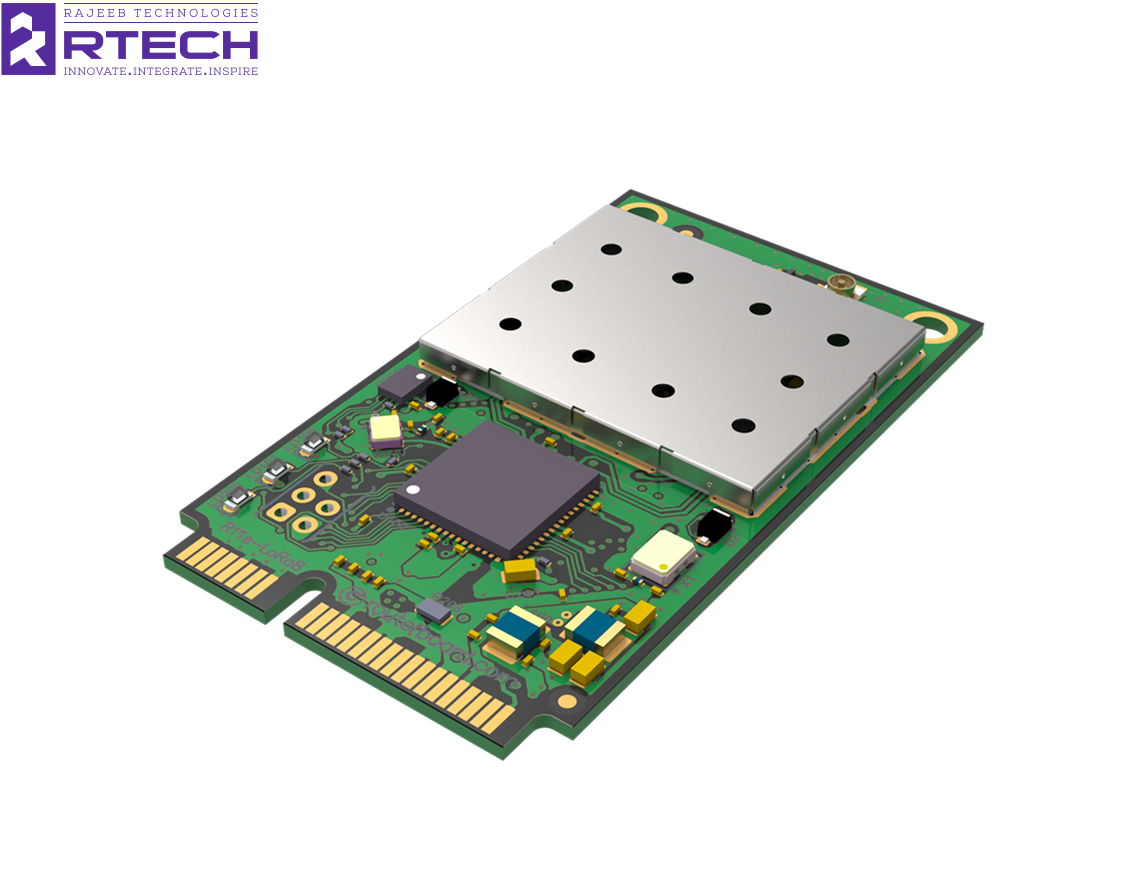

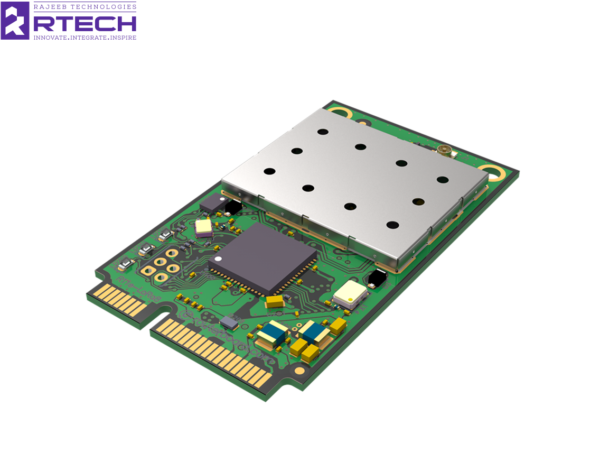

Mikrotik R11e-LR9 Cellular Module

Description

MikroTik R11e-LR9 Cellular Module is a mini PCIe gateway card designed to enable LoRa® connectivity for MikroTik devices. Operating in the 902-928 MHz frequency range, it is ideal for IoT applications in regions such as the United States, Canada, Mexico, Australia, Brazil, and many countries in Asia. The R11e-LR9 is based on the Semtech SX1301 chipset and supports up to 8 channels, Listen Before Talk (LBT), and spectral scan features.

Key Features:

• Frequency Range: 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)
• Chipset: Semtech SX1301
• Channels: 8 different channels
• Listen Before Talk (LBT): Yes
• Spectral Scan: Yes
• RF Output Power: 23 dBm
• Receive Sensitivity: -137 dB @ SF12
• Range: Up to 15 km in rural environments and up to 2 km in urban environments when using MikroTik LoRa® 6.5 dBi antenna kit (not included)
• Power Consumption: Max 2 W
• Operating Temperature: -40°C to 60°C
• Certifications: FCC, IC

For more information and support, visit the official MikroTik support page: https://help.mikrotik.com/
