Mikrotik R11e-LR8G Cellular Module

Description

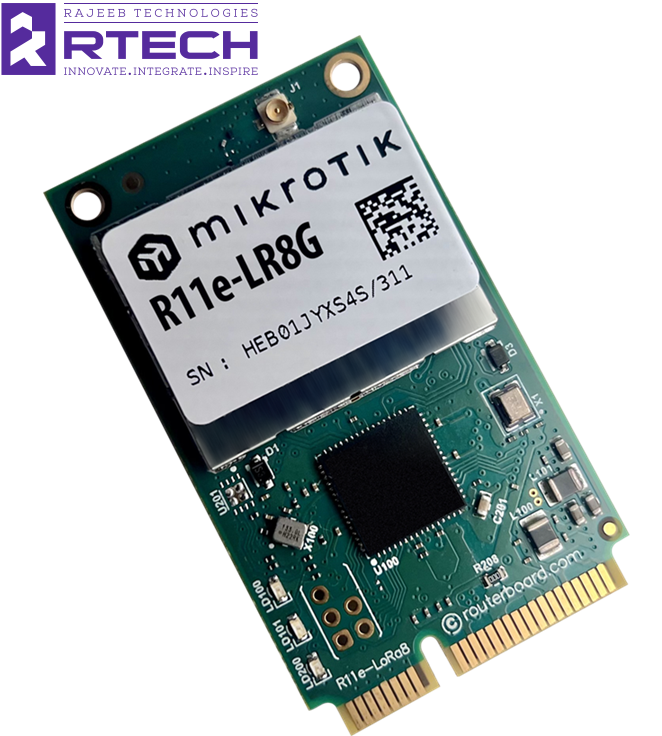

MikroTik R11e-LR8G Cellular Module is a mini PCIe card designed to enable LoRa® connectivity for MikroTik devices. Operating in the 868 MHz frequency range, it is ideal for IoT applications in regions such as Europe, Africa, and the Middle East. The R11e-LR8G is based on the Semtech SX1301 chipset and supports up to 8 channels, Listen Before Talk (LBT), and spectral scan features.

Key Features:

• Frequency Range: 868 MHz (EU)
• Chipset: Semtech SX1301
• Channels: 8 different channels
• Listen Before Talk (LBT): Yes
• Spectral Scan: Yes
• RF Output Power: 27 dBm (EU limit: 14 dBm)
• Receive Sensitivity: -141 dB @ SF12
• Range: Up to 15 km in rural environments and up to 2 km in urban environments when using MikroTik LoRa® 6.5 dBi antenna kit (not included)
• Power Consumption: Max 1.3 W
• Operating Temperature: -40°C to 70°C
• Certifications: CE, ROHS
