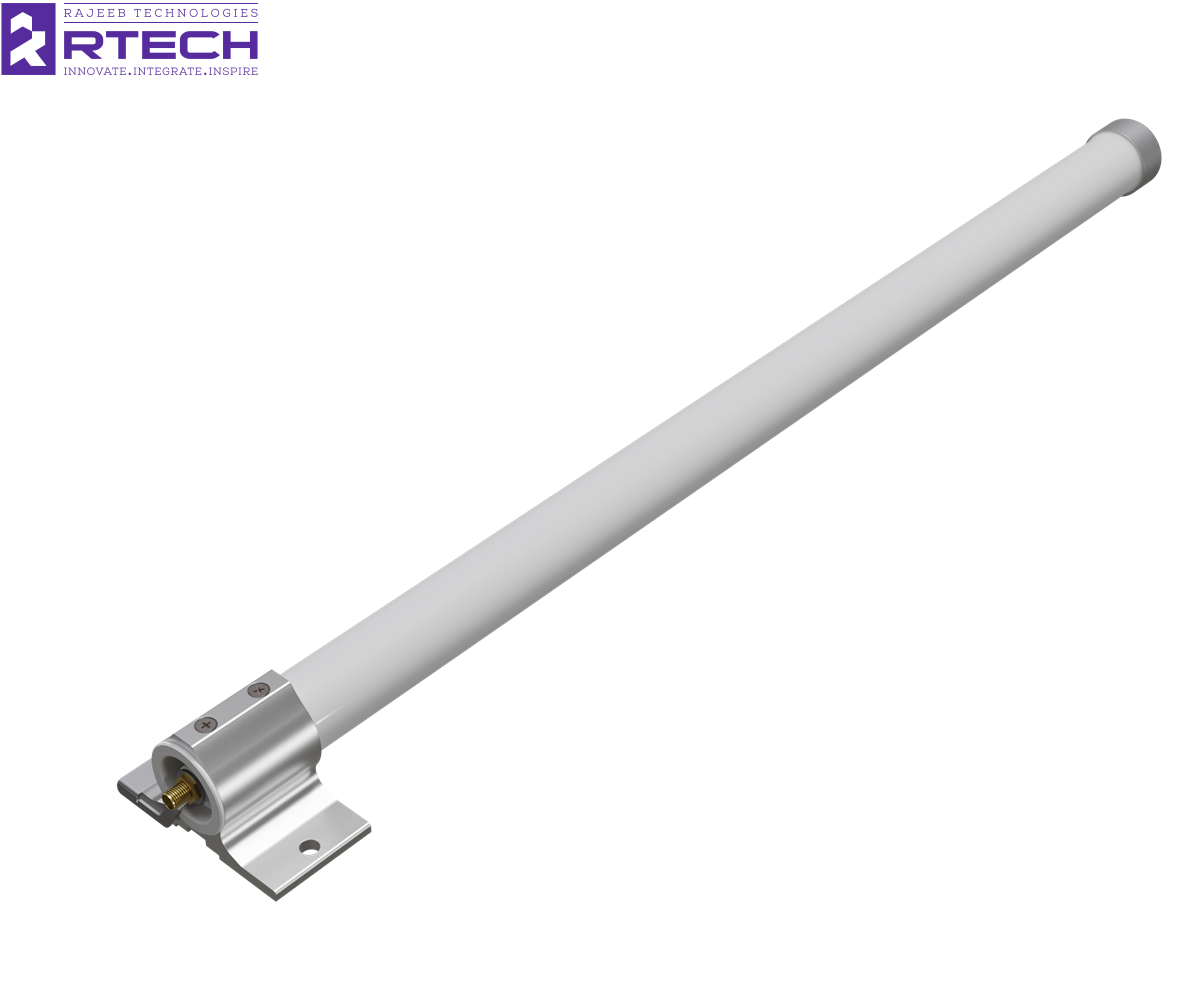

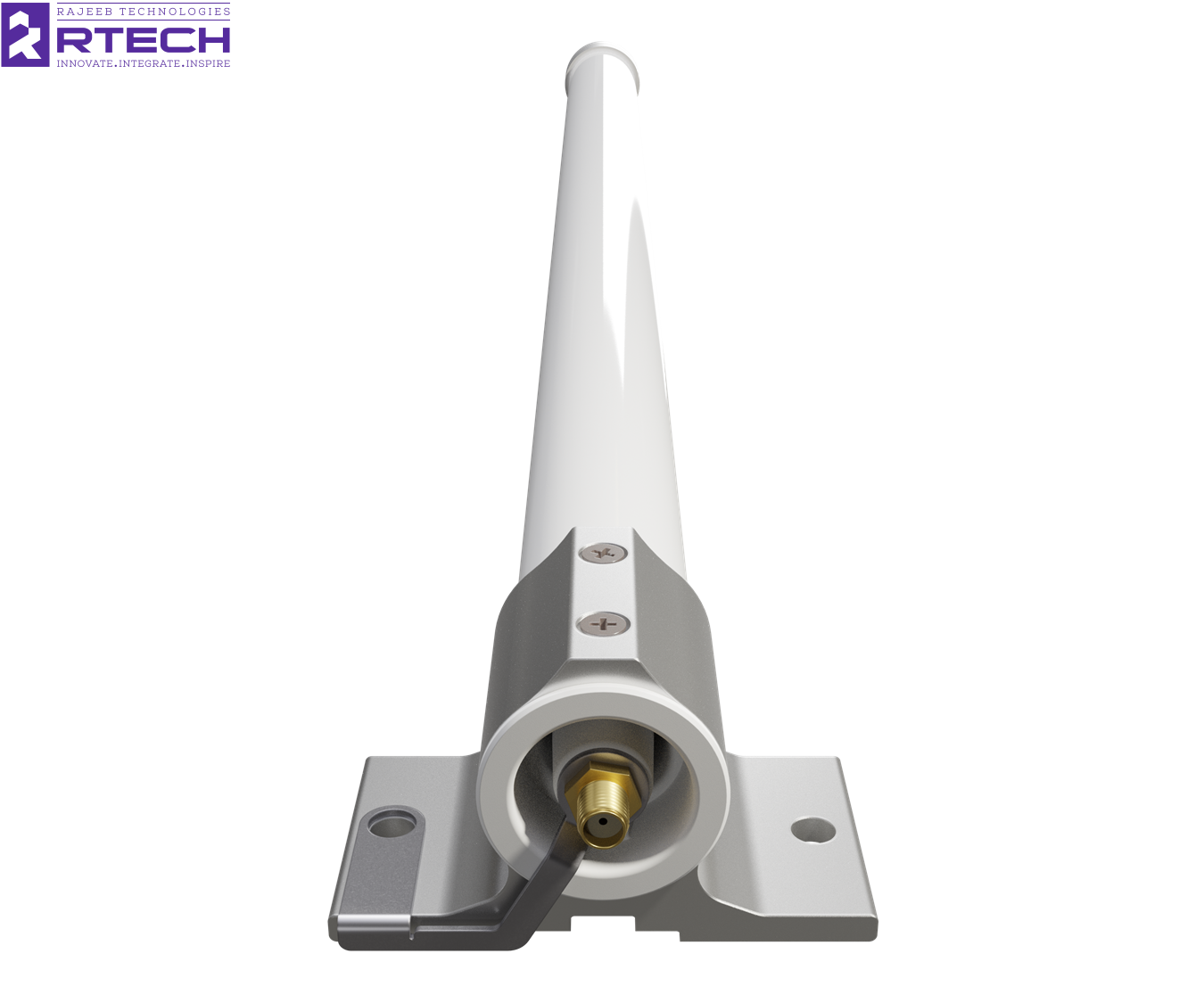

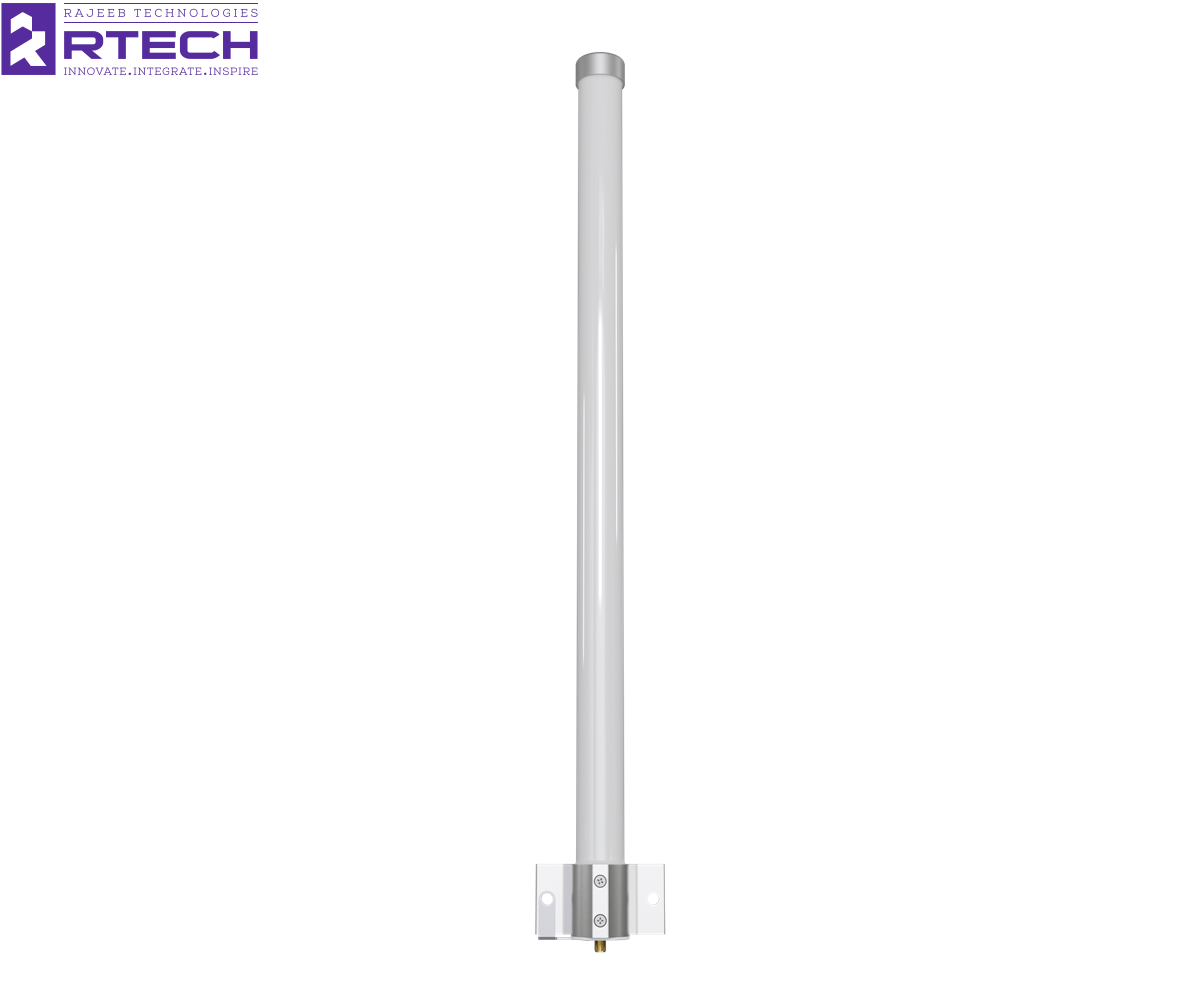

Mikrotik 868_Omni_antenna 868 Omni antenna

Description

MikroTik 868 Omni Antenna is a high-performance antenna designed for LoRa® and IoT applications operating in the 824–960 MHz frequency range. It provides a 6.5 dBi gain with a 360° horizontal and 30° vertical beamwidth, ensuring robust signal coverage for point-to-multi-point wireless networks. The antenna features an IP66-rated enclosure, offering protection against dust and powerful water jets, making it suitable for outdoor deployments in various environments.

Key Features:

• Frequency Range: 824 – 960 MHz
• Gain: 6.5 dBi
• Horizontal Beamwidth: 360°
• Vertical Beamwidth: 30°
• Nominal Impedance: 50 Ω
• Lightning Protection: DC Ground
• Connector: SMA Female
• Weight: 0.6 kg
• Dimensions: Ø 42 x 68 x 495 mm
• Ingress Protection: IP66
• Mounting Compatibility: 25 – 50 mm mast or wall

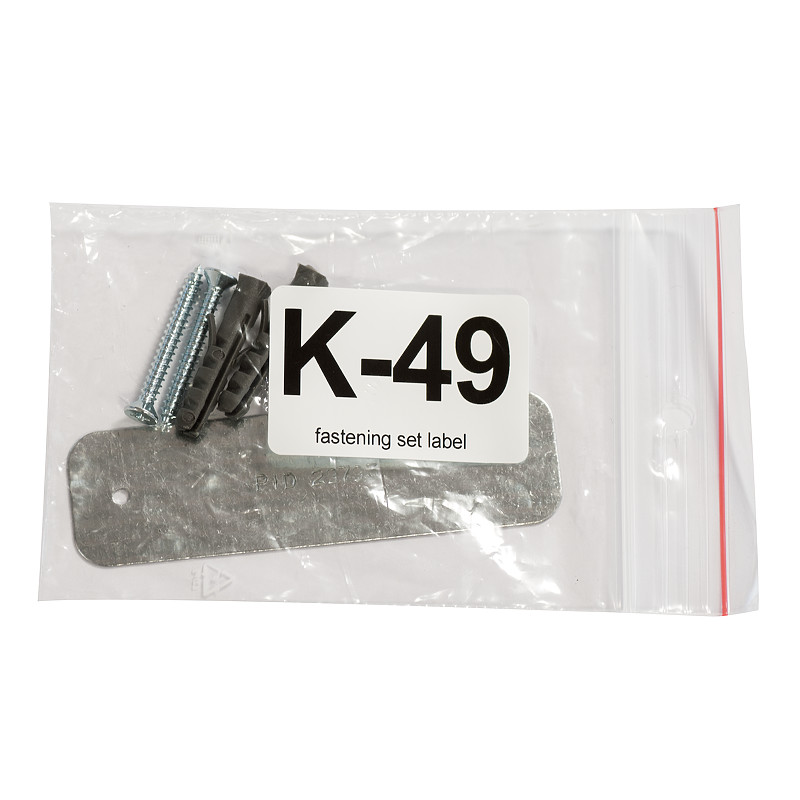

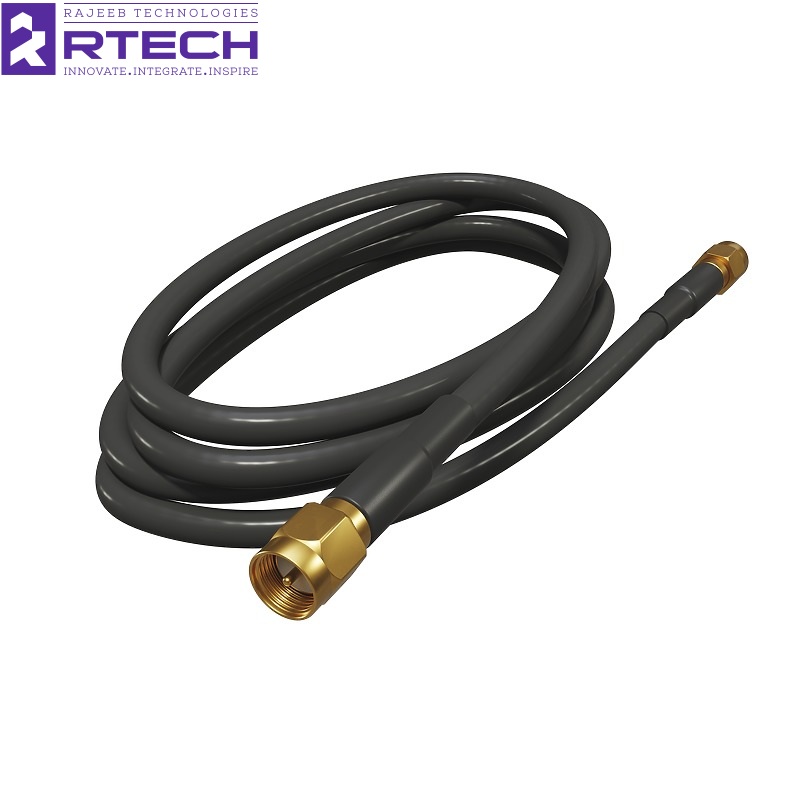

• Included Accessories: 1m SMA cable, fastening set

For more information or to purchase, visit our product page. For support, refer to the MikroTik 868 Omni Antenna User Manual.
